The process of manufacturing paper of fabric based wall coverings entails coating, printing and pre-pasting. In many cases the backing material is coated with a ground color using colored vinyl (PVC) or another substance. Then, pattern printing techniques may be applied using surface, gravure, silk screen or rotary printing. The concluding step generally entails a wet coating procedure. After drying, the basis-weight of finished wall coverings can be verified using a Hammer-IMS basis-weight quality control system which scans the material in transversal direction for maximum material coverage. The system can be equipped with one or more sensors. In addition to basis-weight inspection, wall coverings are subject to visual quality control.

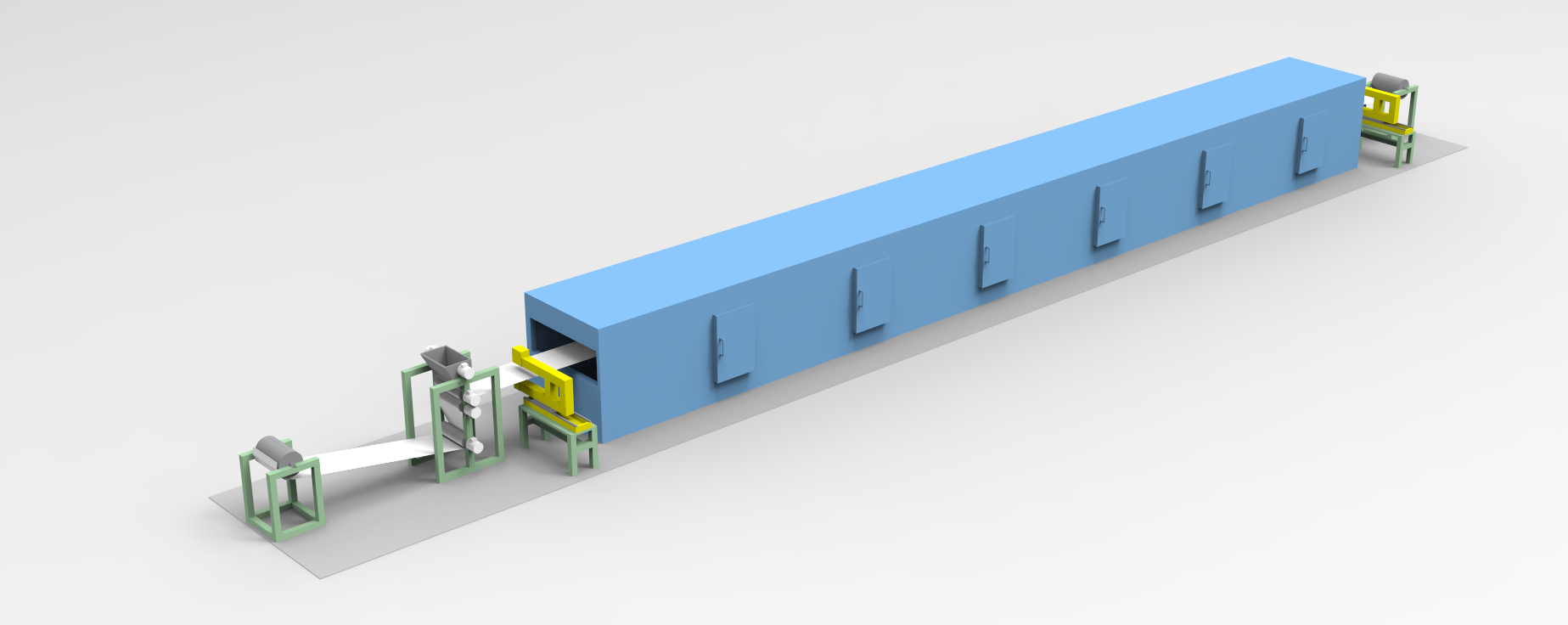

A knife coating line.
MARVELOC-CURTAIN-O
Our CURTAIN integrates our Marveloc technologies enabling full-industrial solutions. CURTAINs are tailored to perform a 24/7 industrial measurement task. Each CURTAIN machine can be equiped by our innovative Marveloc measuring devices of which multiple flavors exist (M-Ray, C-Ray, U-Ray and L-Ray). The CURTAIN itself is basically a rigid metal frame that support high measurement reliability and robustness. The rigidity of the frame guarantees robust measurements even in harsh environments.
MARVELOC-CURTAIN for Labs
In addition to a range of in-line solutions, Hammer-IMS offers thickness and basis-weight measuring systems for laboratory use. Typically, lab systems consist of a single fixed measurement head, optionally equipped with a feeder and/or scanner. The incorporated M-Ray measurement technology is non-radioactive and non-nuclear, so no increased safety precautions or legal restrictions apply for your lab environment. In-depth measurements from within a lab-environment are typically performed for purposes of: production process optimization; when developing new materials such as nonwovens, plastics or coatings, ...; to investigate used specimens to draw conclusions about endurance, wear and material stability.
MARVELOC-CURTAIN-C
The CURTAIN C-frame system, displayed on the right, uses a 100% classic scanning C-frame concept. Its design is sleek and slim. The CURTAIN itself is basically a rigid metal frame that support high measurement reliability and robustness. The rigidity of the frame guarantees robust measurements even in harsh environments. Each CURTAIN machine can be equiped by our innovative Marveloc measuring devices of which multiple flavors exist (M-Ray, C-Ray, U-Ray and L-Ray). 'Marveloc' brings the power of multi-head to classic C-frame measuring technology. The pure electronic nature of the Marveloc technoloy within this fixed or scanning frame is non-nuclear and non-radioactive. C-frame CURTAIN systems are available with arm lengths up to 2 meter. Such systems are extremely flexible because they can simply be inserted on either side of a production line without interrupting production. C-frame type systems can be used on lines of any material width.
M-Ray OEM Module
Whether you are a machine builder, a sensor integrator, a scientific researcher, or just an enthusiast, Hammer-IMS can provide you with an additional M-Ray eye on your measurement tasks. Hammer-IMS is proud to present you its newly developed M-Ray OEM module.
The device has been developed with the main intention to open up the world of non-nuclear and non-radioactive thickness and basis-weight measurement to manufacturers of inline quality control systems. M-Rays - electromagnetic waves just like those used in your cell phone - can be applied to measure plastics, fabrics, nonwovens, coatings, etc. We are happy to assist you with your OEM projects.
Marveloc-CHARIOT
Hammer-IMS released the brand new M-Ray based Marveloc-CHARIOT (or shorter the Chariot!) measuring machine. The compact system is perfectly suited for new and retrofit production lines of thick nonwovens, coated textiles and heavy plastic sheets. The new system efficiently measures the basis-weight or thickness where capacitive measurements are typically not an option. The Chariot is an affordable solution as it incorporates a single-sensor traveling unit that scans the entire product width.
Edge-Vision-4.0
Hammer-IMS excels in inline process and production control. With our EDGE-VISION-4.0-C product family we are adding a new eye to your product or process. We are offering this new product in the same industries we are targeting with our inline thickness and basis-weight measuring solutions (our Marveloc-CURTAIN and Marveloc-CHARIOT products).
